Warping is a common issue in the manufacturing process using a standard type vertical injection molding machine. As a supplier of these machines, understanding the effects of warping on product quality is crucial. In this blog, we'll explore how warping impacts the quality of products made by our standard type vertical injection molding machines and discuss ways to mitigate these effects.
Understanding Warping in Injection Molding
Warping refers to the distortion of a molded part from its intended shape. It occurs when different parts of the molded product cool at different rates, causing internal stresses. These stresses can lead to uneven shrinkage, resulting in warped products. In the context of a standard type vertical injection molding machine, warping can be influenced by several factors, including the machine's settings, the material used, and the design of the mold.
Effects of Warping on Product Quality
Dimensional Accuracy
One of the most significant effects of warping is the loss of dimensional accuracy. When a product warps, its actual dimensions deviate from the design specifications. This can be a major problem, especially in industries where precise measurements are critical, such as the automotive and aerospace sectors. For example, if a component in an engine is warped, it may not fit properly, leading to performance issues or even safety hazards.
Aesthetic Appearance
Warping can also have a negative impact on the aesthetic appearance of the product. A warped product may have visible deformities, such as uneven surfaces or distorted edges. This can be unacceptable for products that are intended to be visually appealing, such as consumer electronics or household items. In some cases, warping can even make the product look unprofessional, which can damage the brand image.
Structural Integrity
The structural integrity of a product can be compromised by warping. When a product warps, the internal stresses can cause cracks or fractures to develop over time. This can weaken the product and reduce its lifespan. For example, a warped plastic container may be more likely to break when subjected to normal use, leading to product failure.
Assembly Issues
Warped products can also cause problems during the assembly process. If a component is warped, it may not fit correctly with other parts, making it difficult or impossible to assemble the product. This can lead to delays in production and increased costs due to rework or scrap.
Factors Contributing to Warping in Standard Type Vertical Injection Molding Machines
Machine Settings
The settings of the standard type vertical injection molding machine can have a significant impact on warping. For example, the injection speed, pressure, and temperature can all affect the cooling rate of the molded product. If the injection speed is too high, the material may not have enough time to fill the mold evenly, leading to uneven cooling and warping. Similarly, if the temperature is too high or too low, it can cause the material to shrink unevenly, resulting in warped products.
Material Properties
The properties of the material used in the injection molding process can also contribute to warping. Different materials have different shrinkage rates, and some materials are more prone to warping than others. For example, materials with high glass fiber content tend to have lower shrinkage rates and are less likely to warp. On the other hand, materials with low melting points or high viscosity may be more difficult to mold and are more likely to warp.
Mold Design
The design of the mold can also play a role in warping. A poorly designed mold may not allow for proper cooling or may cause the material to flow unevenly, leading to warped products. For example, if the mold has sharp corners or thin walls, it may cause the material to cool too quickly in those areas, resulting in warping.
Mitigating the Effects of Warping
Optimizing Machine Settings
To reduce the effects of warping, it's important to optimize the machine settings. This may involve adjusting the injection speed, pressure, and temperature to ensure that the material fills the mold evenly and cools at a consistent rate. It may also be necessary to adjust the cooling time to allow the product to cool completely before ejecting it from the mold.
Selecting the Right Material
Choosing the right material is also crucial in reducing warping. It's important to select a material that has a low shrinkage rate and is less prone to warping. Additionally, the material should be compatible with the machine and the mold design.
Improving Mold Design
A well-designed mold can help to reduce warping. This may involve using a mold with a uniform wall thickness, avoiding sharp corners, and providing adequate cooling channels. Additionally, the mold should be properly maintained to ensure that it functions correctly.
Our Standard Type Vertical Injection Molding Machines

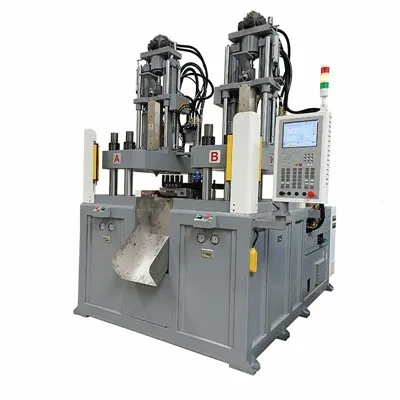

At our company, we offer a range of standard type vertical injection molding machines, including the Fixed Table Vertical Injection Molding Machine, the Baizan Standard Vertical Injection Molding Machine, and the Stationary Table Vertical Injection Moulding Machine. These machines are designed to provide high-quality, consistent results with minimal warping.
Our machines are equipped with advanced features and technologies that help to optimize the injection molding process and reduce the effects of warping. For example, our machines have precise temperature control systems that ensure the material is heated and cooled at the right temperature, and they also have adjustable injection speeds and pressures to allow for customized molding.
Conclusion
Warping can have a significant impact on the quality of products made by a standard type vertical injection molding machine. It can affect dimensional accuracy, aesthetic appearance, structural integrity, and assembly. However, by understanding the factors that contribute to warping and taking steps to mitigate these effects, we can produce high-quality products with minimal warping.
If you're interested in learning more about our standard type vertical injection molding machines or have any questions about warping and product quality, please feel free to contact us for a procurement discussion. We're here to help you find the right solution for your manufacturing needs.
References
- "Injection Molding Handbook" by O.A. Tolinski
- "Plastics Processing Technology" by A. Bakker
