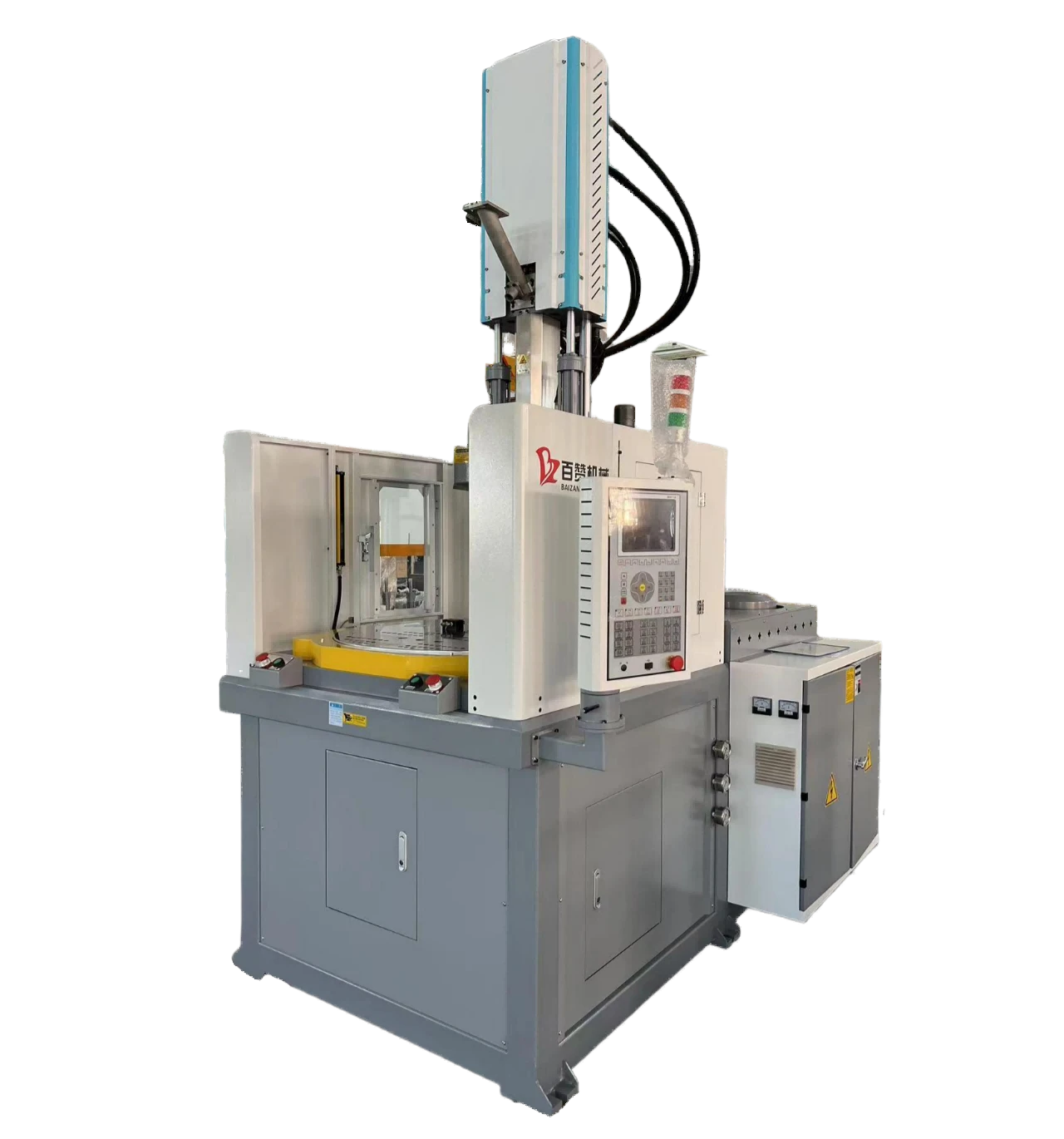

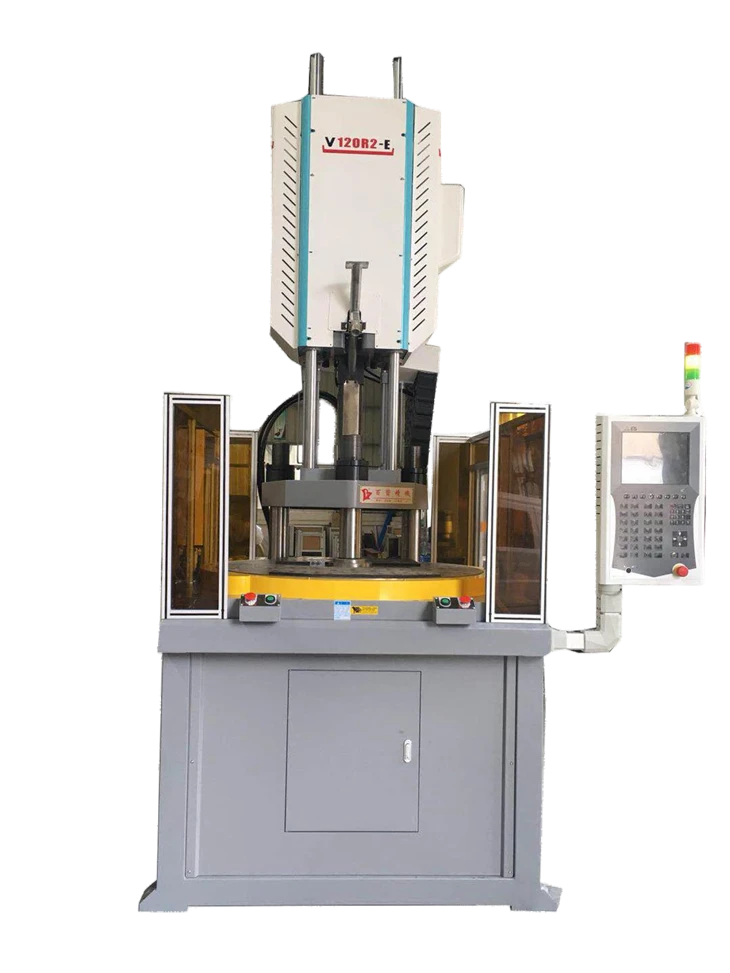

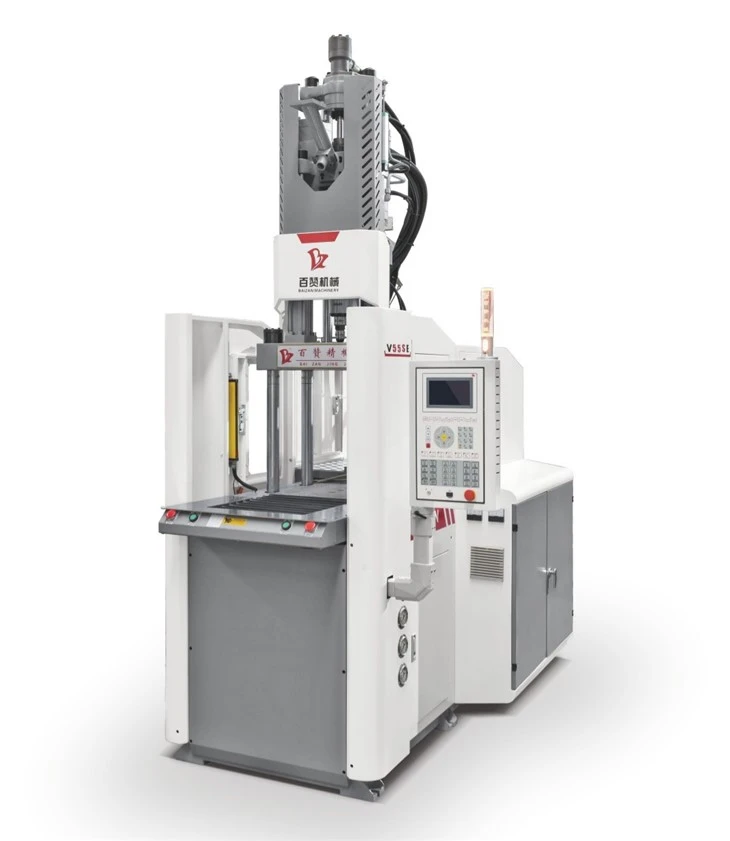

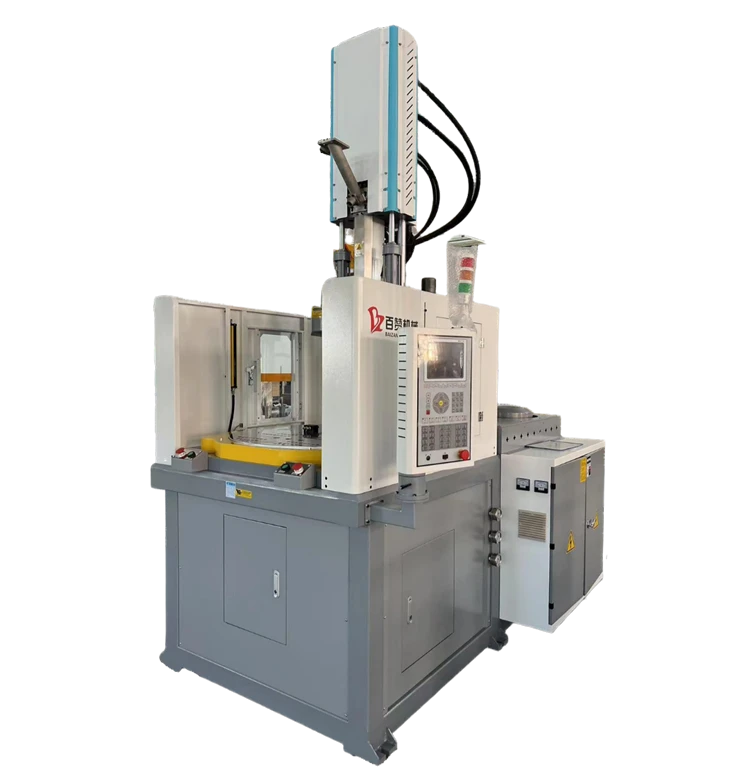

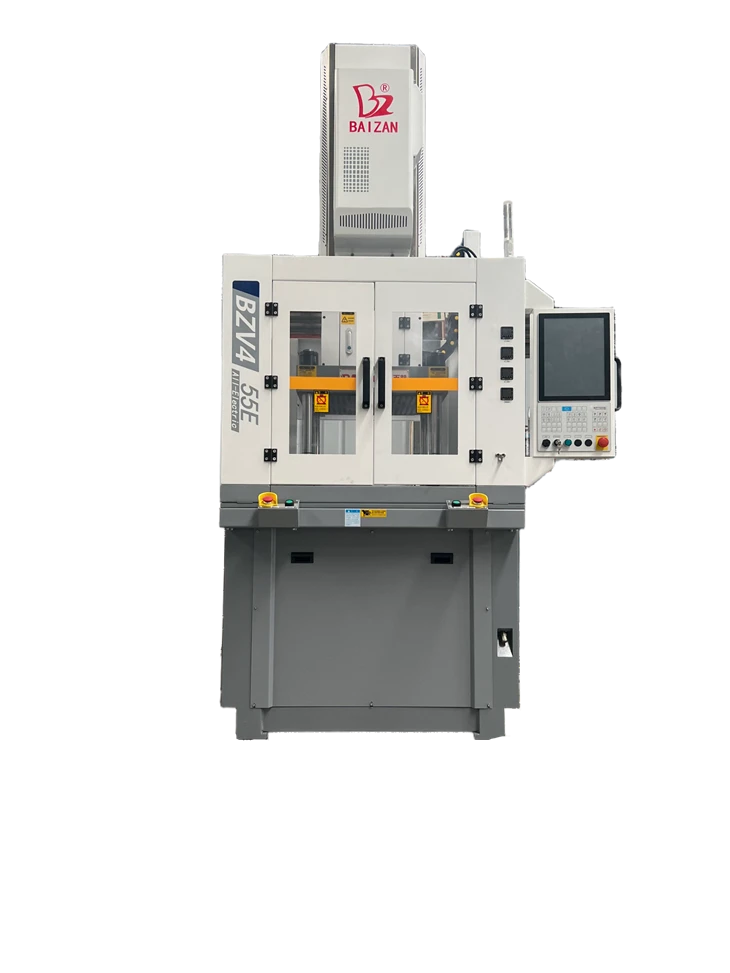

Vertical Injection Molding Solution For Insert Overmolding & Precision Small Plastic Parts
This vertical hybrid molding machine adopts an electro-hydraulic hybrid power system, different from conventional full-hydraulic models that run continuous idle pressure. The servo system outputs power only during clamping, injection and plasticizing cycles, cutting unnecessary power waste. The top-open vertical mold structure allows easy manual or robotic insert loading, solving the structural limitations of horizontal machines for insert and overmolding processes.
Optimized for micro and small precision parts, the machine features closed-loop speed and pressure control to effectively reduce flash, short shots and product deformation. It is widely used for mass production of electronic connectors, automotive embedded hardware, medical miniature plastic components and industrial precision inserts.
one-stop solution
professional team
high quality
Core Advantages of Vertical Hybrid Molding Machine
Outstanding Energy Saving
The hybrid power system is designed for low-consumption continuous operation. Traditional full-hydraulic vertical machines consume constant power during mold cooling and standby stages. This hybrid model activates the servo motor only on demand.
Vertical Clamp, Perfect For Insert Molding
The vertical top-open layout supports all common insert molding workflows. Operators can quickly place copper pins, terminal sheets and stamped hardware, and the machine seamlessly matches automatic vibration feeding and robotic handling for non-stop production.
High Precision For Mini Plastic Parts
Dual closed-loop pressure and speed control ensures reliable injection repeat accuracy, meeting strict tolerance requirements for thin-wall micro parts and precision small components.
Secondary Overmolding Ready
The reinforced integrated frame and thickened mold plates reduce vibration during high-speed injection and stabilize long-run molding quality.
Application Fields
This vertical hybrid molding machine targets the refined molding production demands of multiple industries, and covers three core processing scenarios stably and efficiently.
It performs excellently in metal insert molding, completing the integrated molding of plastic-wrapped metal accessories such as power connectors, sensor hardware and electrical terminal pins. It effectively solves the problems of loose fitting and unstable encapsulation of manually assembled parts.
For secondary overmolding production, the equipment supports composite molding of different materials, including soft rubber overmolding hard plastic and plastic wrapping metal structures. It is commonly used in the production of non-slip handles, wire anti-pull sleeves and multi-material composite parts, simplifying the original secondary processing procedures.

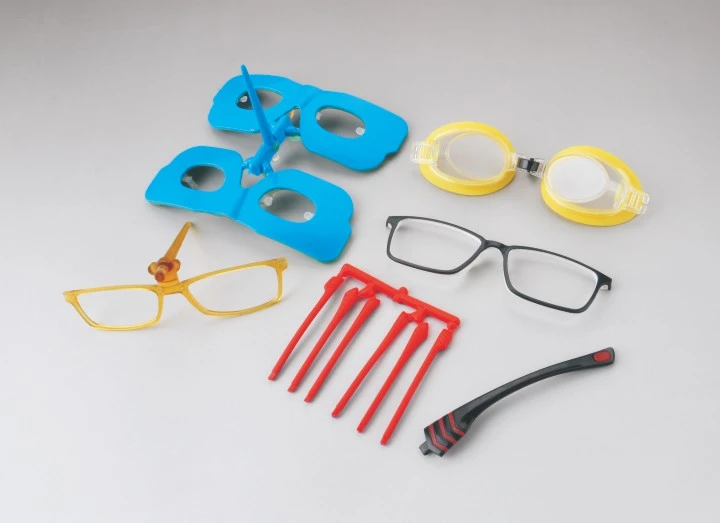

Meanwhile, the equipment meets the high-standard production requirements of precision small plastic parts. It is suitable for mass processing of micro electronic shells, watch plastic accessories, small medical consumable parts and miniature gear components, with stable product yield and high molding consistency.
Standard Model Specifications
Clamping force:
25Ton / 55Ton / 160Ton optional
Drive type:
Servo hybrid hydraulic & electric injection
Control system:
PLC industrial touch screen, multi-language support
Injection weight range:
Suit micro to medium small parts
Mold opening direction:
Vertical top opening
Heating zone:
Customizable according to material PP/ABS/TPE/Nylon

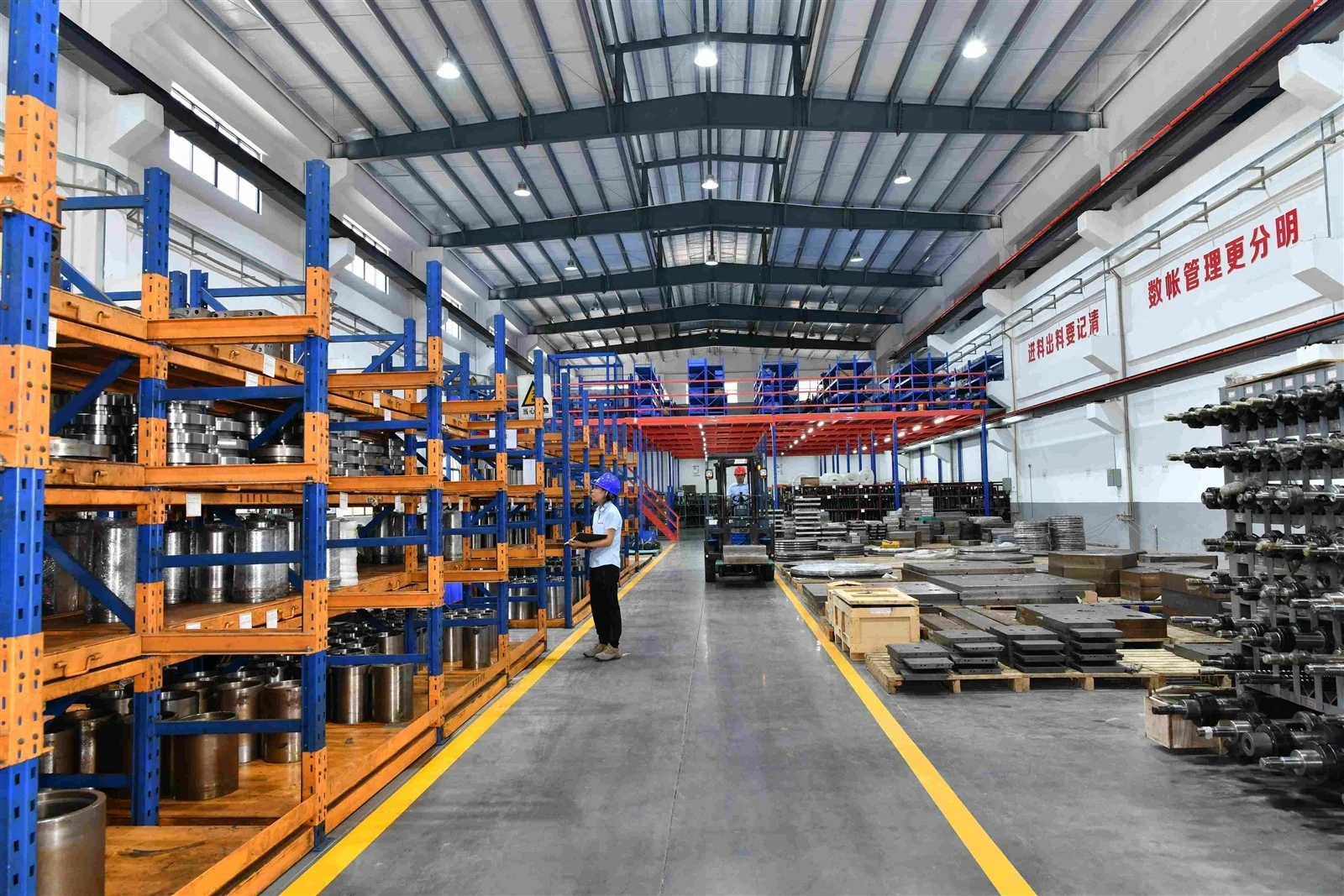

Professional Vertical Injection Molding Machine Manufacturer
We focus on vertical injection molding equipment R&D and manufacturing over years. All our core model is Energy-Saving Vertical Hybrid Molding Machine, tailor-made for insert and precision small part production. We provide one-stop service: machine customization, mold matching suggestion, after-sales overseas technical support, spare parts supply. Welcome overseas buyers for factory inspection and on-site machine test.
