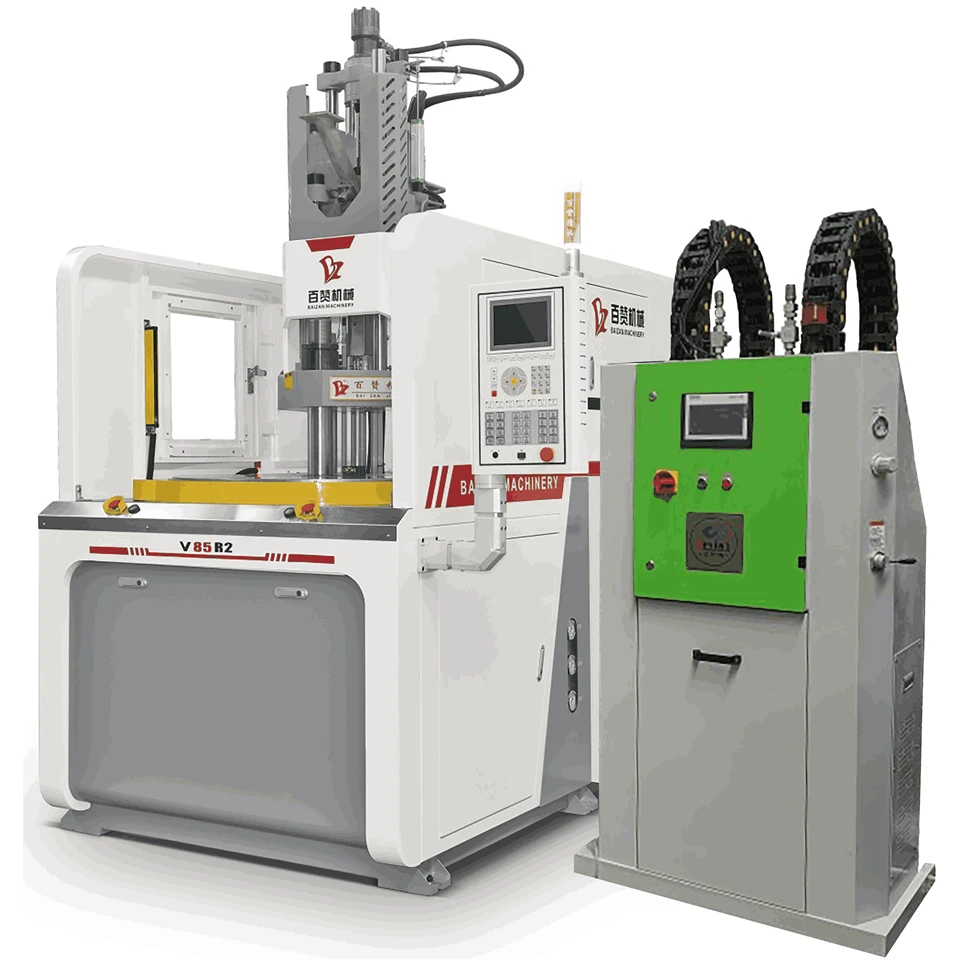

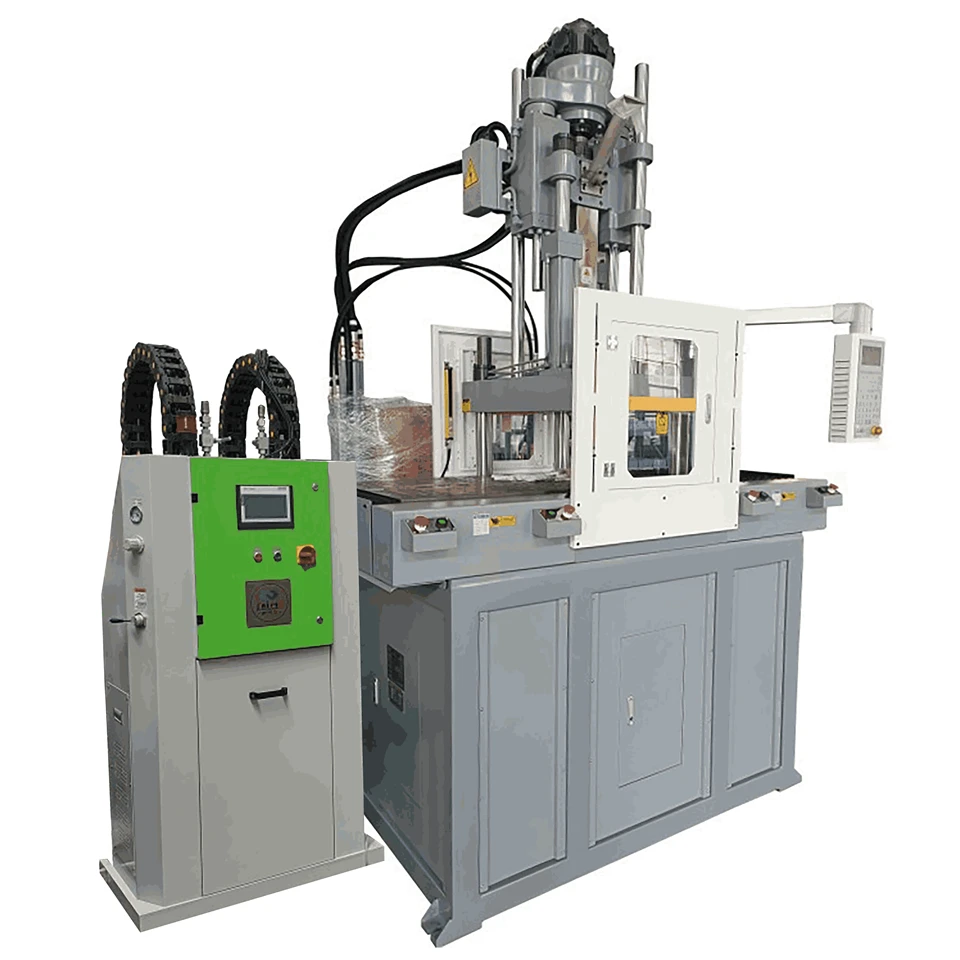

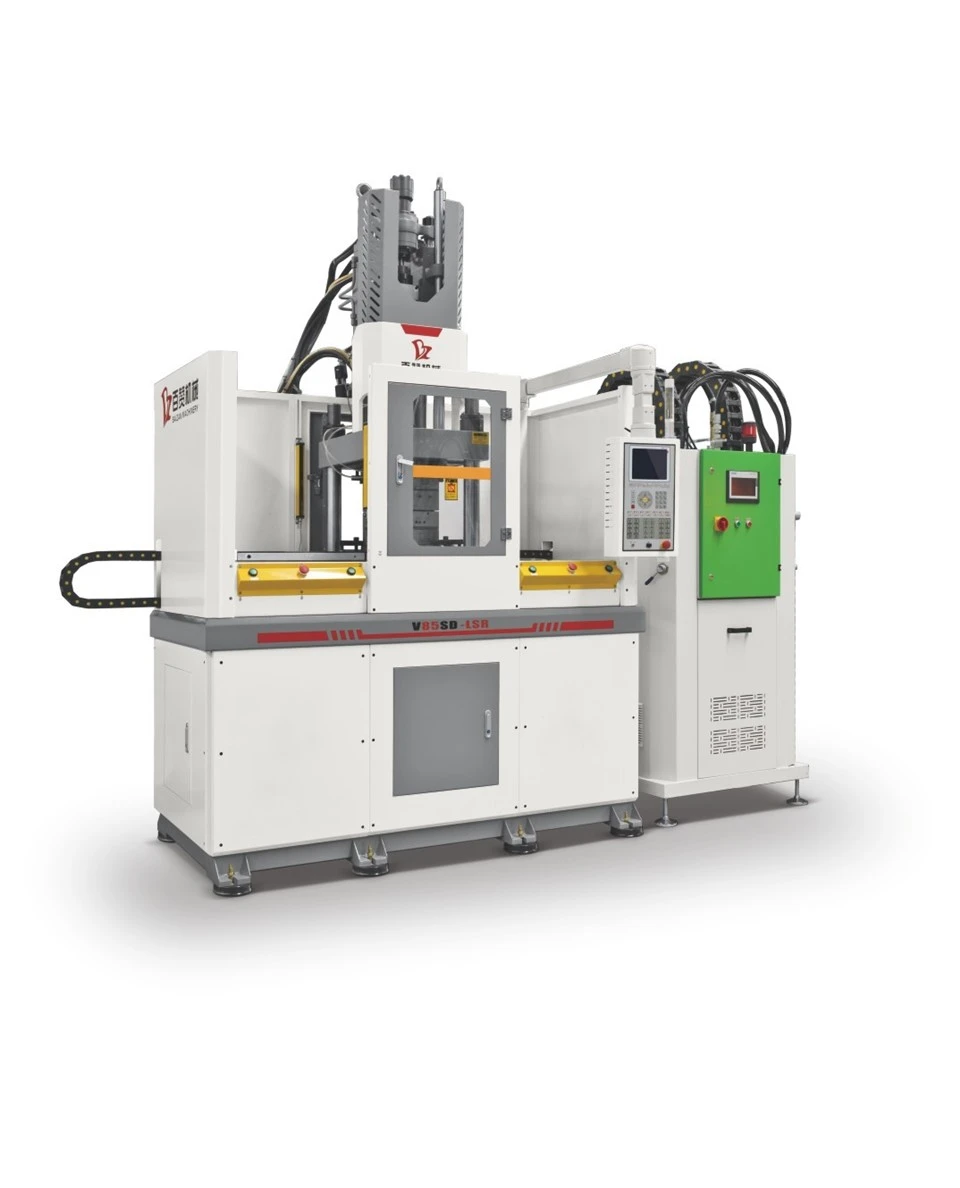

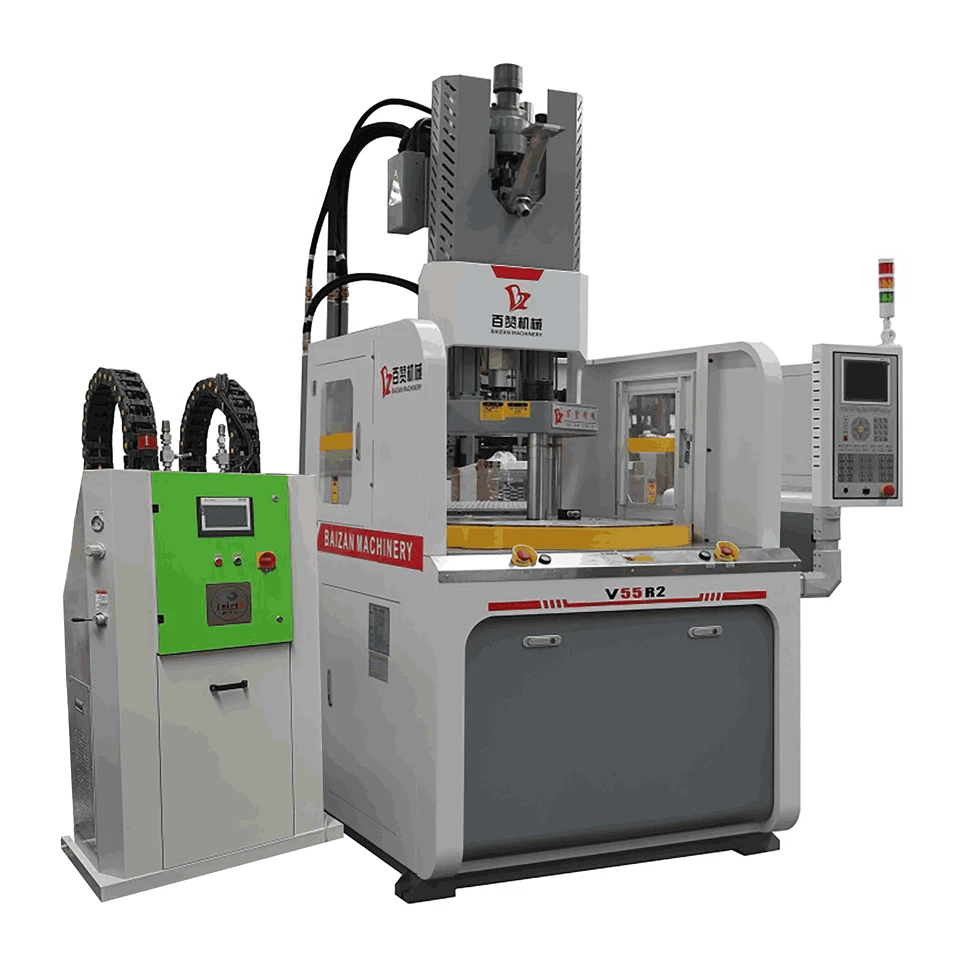

Vertical LSR Injection Machine

Liquid Silicone Rubber (LSR) offers several advantages over conventional rubber materials. It provides excellent flexibility, heat resistance, chemical resistance, electrical insulation, and long-term durability. In addition, LSR is biocompatible and odorless, making it suitable for products that require high hygiene standards.

As product designs become more complex and quality requirements continue to rise, manufacturers need molding equipment capable of delivering stable processing performance. This is where the Vertical LSR Injection Machine demonstrates its value.

A Vertical LSR Injection Machine uses a closed injection system to accurately meter, mix, and inject two-component liquid silicone materials into a heated mold. Once injected, the material cures rapidly under controlled temperature conditions to form the final silicone product.

Unlike traditional rubber molding methods, this automated process reduces manual handling, improves dimensional accuracy, and shortens production cycles.

The vertical clamping structure also makes insert loading more convenient, allowing manufacturers to integrate metal parts or electronic components directly into silicone products during molding.

The vertical machine configuration offers several practical advantages for silicone molding applications.

First, gravity helps keep inserts accurately positioned before mold closing, making the machine ideal for insert molding.

Second, the open working area allows operators or automation systems to load inserts quickly and safely.

Finally, vertical machines are easier to integrate with robotic automation, improving production efficiency while reducing labor costs.

These benefits make the Vertical LSR Injection Machine particularly suitable for high-volume, precision manufacturing environments.

As smart manufacturing continues to evolve, modern Vertical LSR Injection Machine systems are becoming increasingly intelligent. Features such as servo-driven injection systems, automated material feeding, robotic part removal, real-time process monitoring, and Industry 4.0 connectivity are helping manufacturers achieve higher productivity with greater process stability.

These technological advancements are enabling silicone manufacturers to produce more complex products while maintaining strict quality standards and reducing operating costs.
