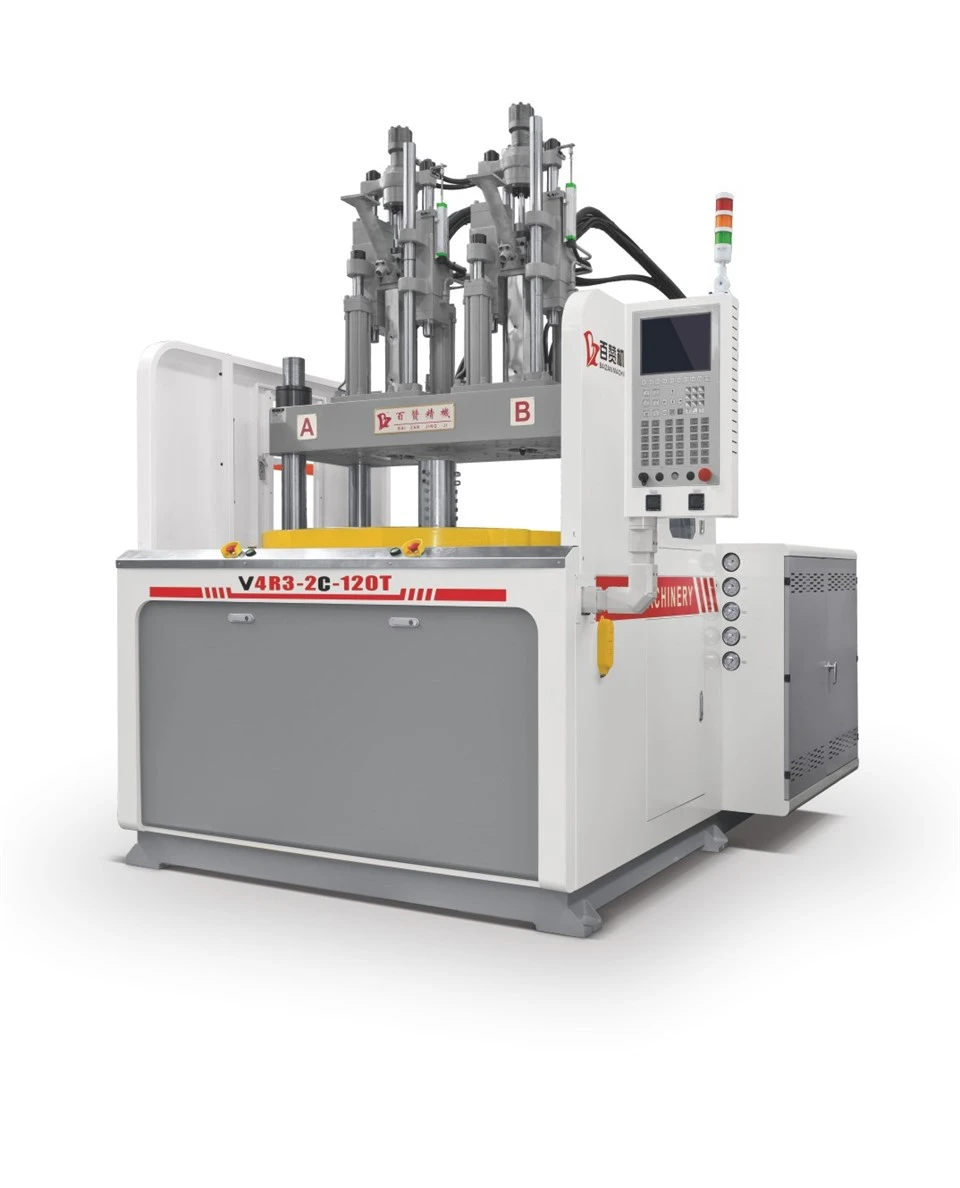

Dual Color Molding Machine:

Improve Product Functionality and Manufacturing Efficiency

01.

What is a Dual Color Molding Machine?

A Dual Color Molding Machine is a specialized injection molding machine equipped with two injection units. It enables two different colors or two different plastic materials to be injected into the same mold during one production cycle.

Unlike conventional injection molding, which requires secondary assembly or painting, a Dual Color Molding Machine combines two materials directly during molding, creating products with enhanced appearance, stronger bonding, and improved functionality.

02.

How Does a Dual Color Molding Machine Work?

The production process typically consists of two injection stages:

First Shot: The machine injects the base material to form the primary structure.

Mold Rotation or Transfer: A rotary platen, sliding table, or movable mold transfers the first molded part to the second cavity.

Second Shot: A second material or color is injected onto the first component.

Cooling and Ejection: The finished product is cooled and automatically ejected.

This integrated process significantly reduces manual handling and ensures high production consistency.

03.

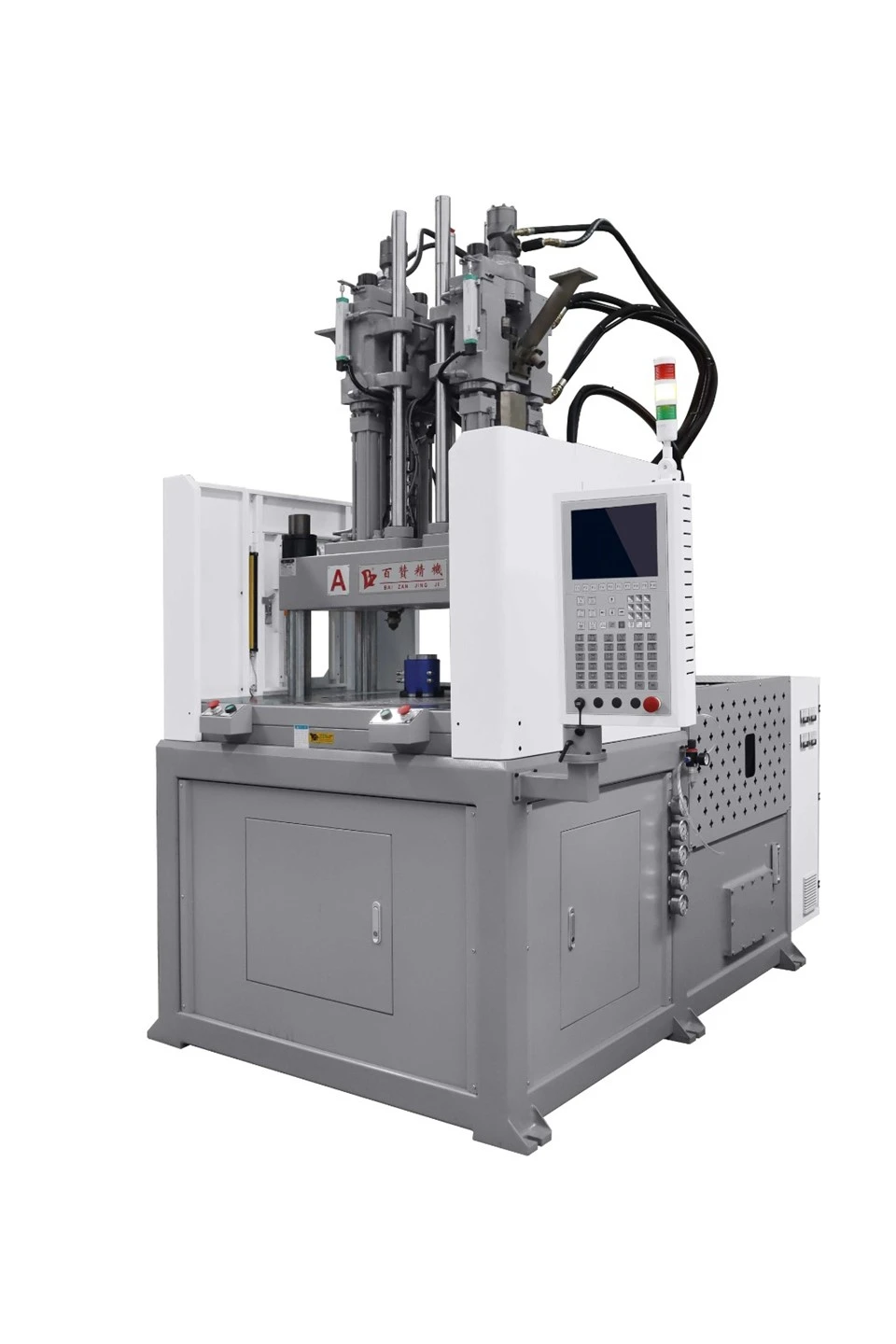

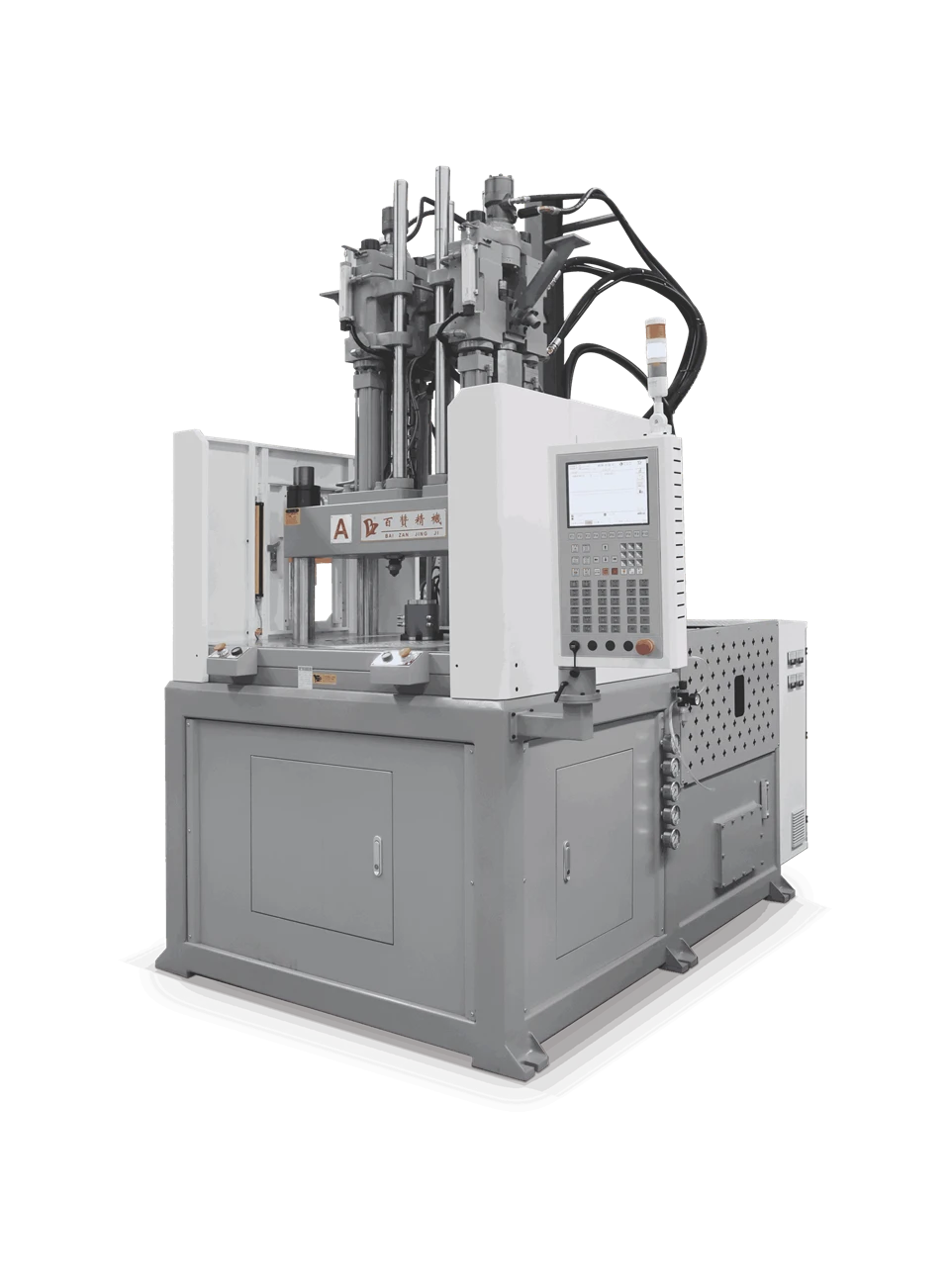

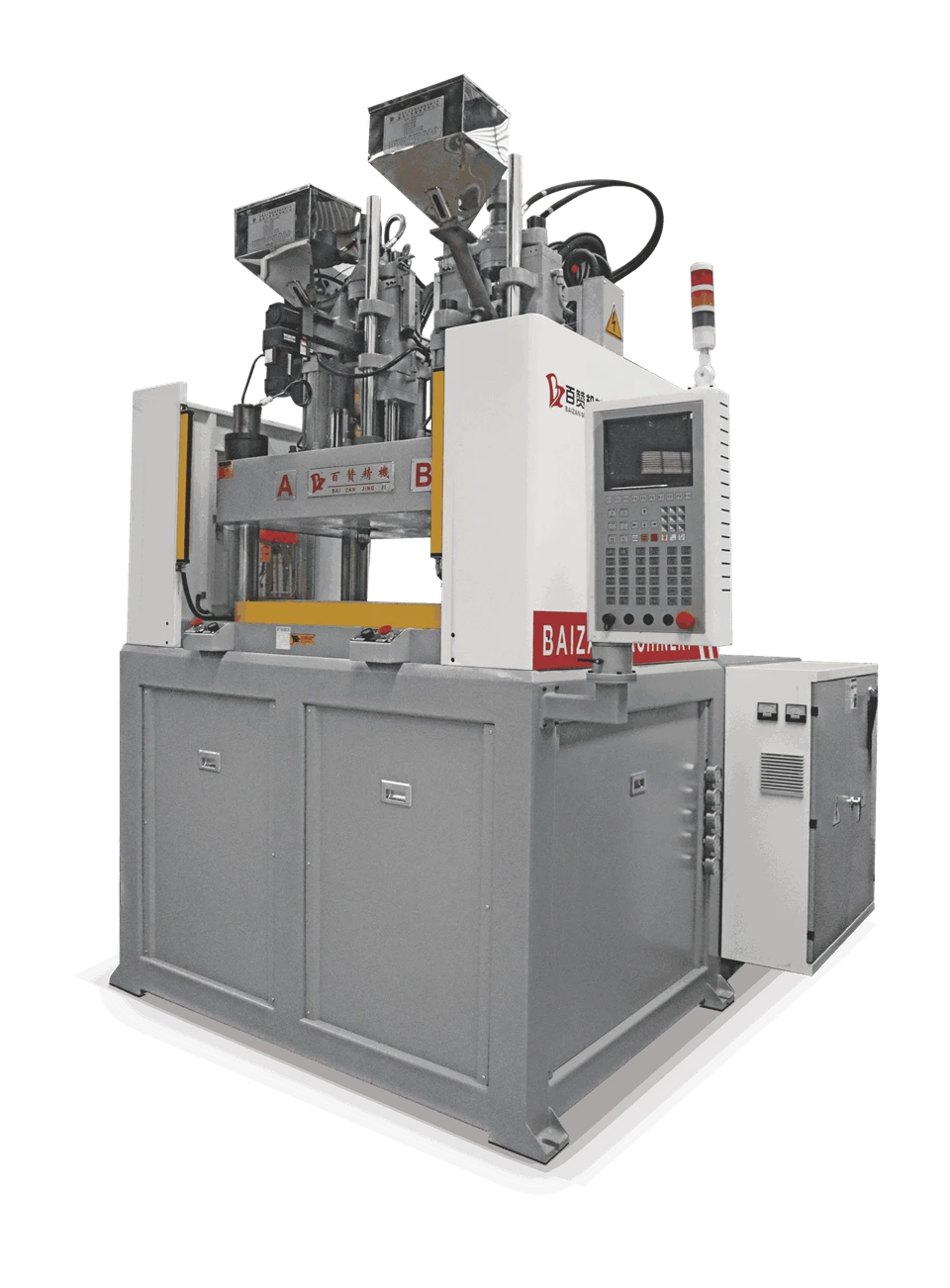

Why Choose a Vertical Dual Color Molding Machine?

For insert molding and precision applications, many manufacturers prefer a vertical configuration.

Compared with horizontal machines, a vertical Dual Color Molding Machine offers several advantages:

Easier insert placement

Better positioning accuracy

Convenient integration with automation

Smaller installation footprint

Suitable for overmolding metal inserts and electronic components

04.

What's Industries Benefiting from Dual Color Injection Technology

As product designs become more sophisticated, the demand for Dual Color Molding Machine technology continues to grow in industries such as:

Automotive manufacturing

Consumer electronics

Medical devices

Home appliances

Packaging

Industrial equipment

Electrical components

Manufacturers can improve both product competitiveness and production efficiency by adopting dual-shot molding technology.

Key Advantages of a Dual Color Molding Machine

1. Produce Attractive Multi-Color Products

The most obvious advantage of a Dual Color Molding Machine is the ability to manufacture products with two colors in a single molding cycle. This creates visually appealing products without additional painting or printing processes.

2. Combine Different Materials

Manufacturers can combine rigid plastics with soft elastomers such as TPE or TPU, allowing products to feature both structural strength and soft-touch surfaces.

Typical applications include:

Toothbrush handles

Electric tool grips

Automotive buttons

Medical device handles

Consumer electronic housings

3. Reduce Production Costs

By integrating two molding processes into one cycle, a Dual Color Molding Machine helps reduce:

Secondary assembly operations

Labor costs

Material waste

Production lead time

Higher automation also lowers the risk of human error.

4. Improve Product Quality

Since both materials are molded together inside the mold, the bonding strength is significantly better than manual assembly or adhesive bonding. This results in products with improved durability and dimensional accuracy.

5. Increase Production Efficiency

A Dual Color Molding Machine shortens the manufacturing process by eliminating post-processing steps. Manufacturers can achieve higher output while maintaining stable product quality.
