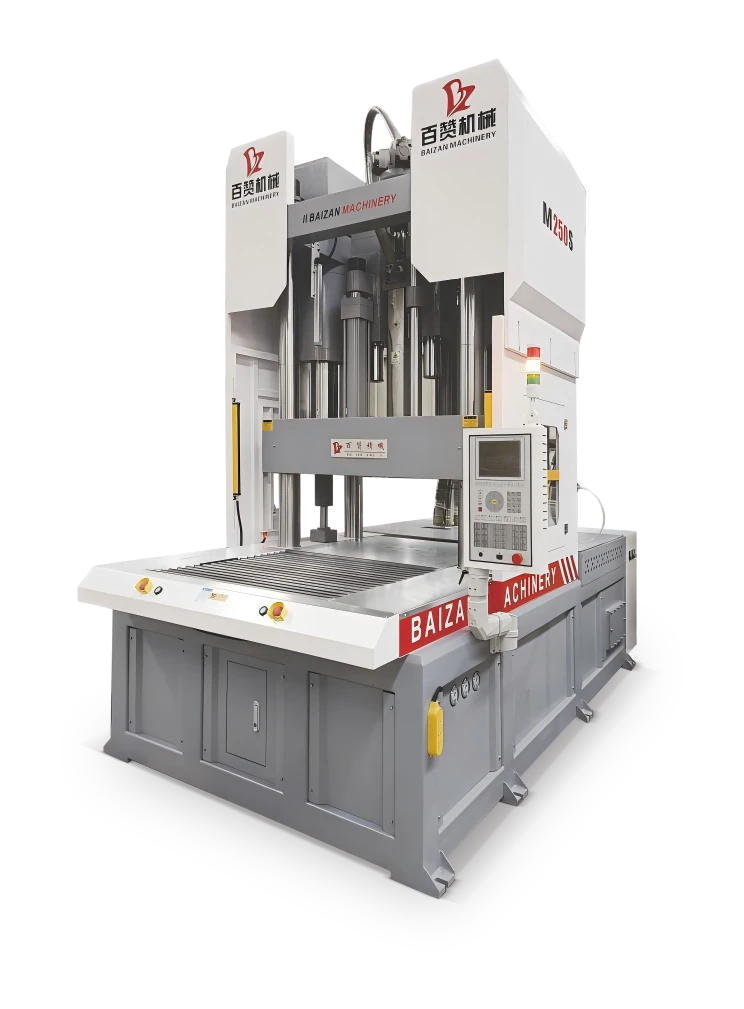

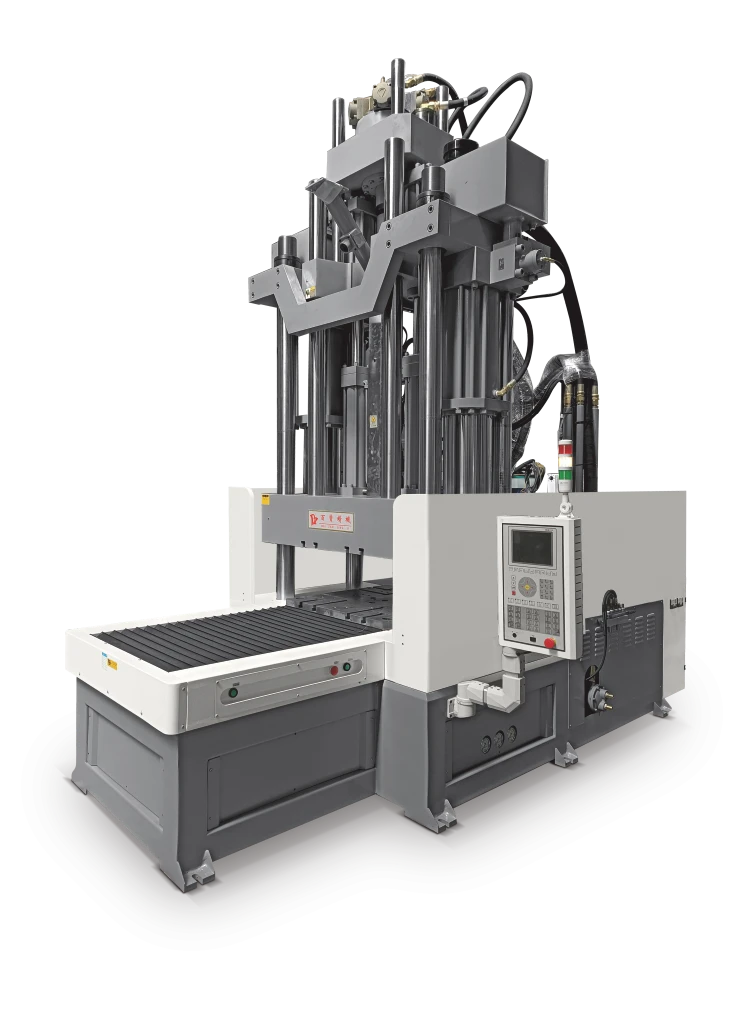

Products Description
The machine uses a low-worktable design, with a worktable height of approximately 900 mm across the range. The lower working height makes loading and unloading easier and also provides convenient access for connecting auxiliary equipment.
The oil cylinder, injection cylinder and lower platen are manufactured as ductile iron castings. The integrated cast structure provides good rigidity and helps reduce deformation and the risk of oil leakage.
Compared with conventional vertical injection molding machines with the same clamping force, the low-worktable design has a lower overall machine height. It is therefore suitable for large-size vertical injection molding applications where installation height is limited.
Advantages
1. Low worktable
The worktable height is approximately 900 mm, making it easier for operators to load materials and remove molded parts..
3. Insert molding
Suitable for products such as metal insert overmolding, wired plugs, scissors, keys and other plastic parts with metal or other inserts.
4. Compact and energy-saving
The vertical structure requires less floor space. A servo motor system is available as an option and can reduce energy consumption by approximately 50–70%, depending on the operating conditions.
Parameters of low stage skateboard vertical injection molding machine
| Specification | Unit | M120S | M120SD | M160S | M160SD | M200S | M200SD |
| Screw Diameter | mm | Φ28 | Φ30 | Φ32 | Φ36 | Φ40 | Φ40 |
| Screw Stroke | mm | 140 | 140 | 200 | 200 | ||
| Theoretical Shot Volume | cm3 | 86 | 98 | 112 | 203 | 251 | |
| Injection Molding Quality | g(oz) | 79(2.8) | 91(3.2) | 103(3.6) | 187(6.6) | 231(8.2) | |
| Max.injection pressure | Mpa(kgf/cm2) | 212(2169) | 185(1890) | 162(1661) | 228(2333) | 185(1890) | |
| Injection rate | cm3/s | 86 | 98 | 144 | 101 | 150 | |
| Screw speed | kN(tf) | 0-350 | 0-300 | 0-250 | |||
| Clamping force | mm | 1176(120) | 1568(160) | 1960(200) | |||
| Clamping Stroke | mm | 300 | 300 | 350 | |||
| Min.Mold Thickness | mm | 280 | 330 | 400 | |||
| Max.Open Distance | mm | 580 | 630 | 750 | |||
| Max.size of Mold(L×W) | mm | 800*600 | 900*600 | 950*650 | |||
| Slide size (L*W) | mm | 760*840 | 1400*420 | 800*900 | 1500*900 | 860*950 | 1600*950 |
| Mechanine Dimesions | mm | 3450*2040*2710(3740) | 3590*2120*2750(3770) | 3680*2340*2955(3975) | |||
| Machine weight | tf | 8.5 | 9 | 10 | 11 |
13 |
14 |
Application

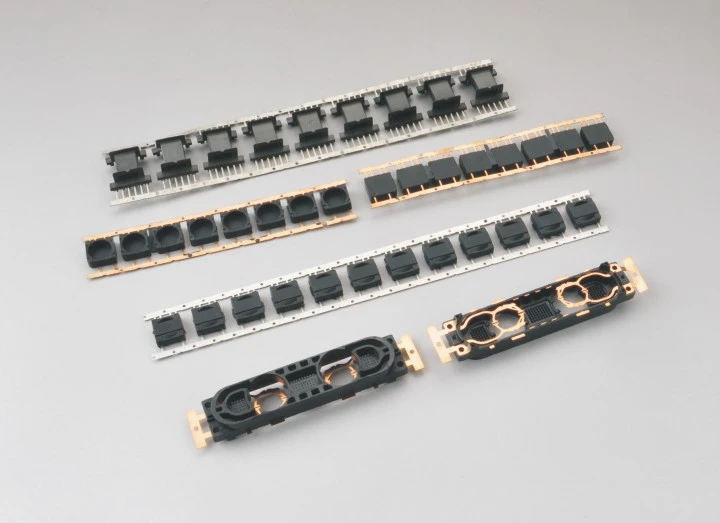

Electronic and electrical components: Used for molding electronic connectors, plugs, RJ45 connectors, relays and other components.
Wire and metal insert overmolding: Suitable for overmolding wires and power cords, as well as molding various metal inserts with terminals.
Consumer and protective products: Suitable for products such as clothing buttons, protective gloves and other products requiring specific materials or molding processes.
